Intermittent wiper for X1100C?

[BiffNH]

Very glad you

View attachment 14569Just need to add the knob.

Very glad you got it working. I surely don't understand why ours are different - mine works really well - ran it for almost 6 hours straight in our last snow event. I have an extra knob I will send to you if you wish. I had to purchase a 2 pack so I have the extra.



[tfdr1]

View attachment 14569Just need to add the knob.

I can 3d print one for you like mine if you want. The color of the line can be a different color too.

Dave



[Jay]

Indiana Kubota - I installed the board today and it seems to work OK. Kubota changed the wiring to the switch on my 2022 model so I had to make a slight modification (the lead to the motor is in the middle and not the bottom of the connector). Fortunately I checked it with my meter before going too far. The most difficult part was getting the board into place! The sound deadener is much thicker than I initially realized so not enough of the rheostat came through to engage the threads. Thanks very much for your research and confirmation that this unit would do the trick.

Biffnh - I installed the board in my 2022 Kubota making sure to use the middle wire and the wiper works normally with the switch on. With switch off and board switch on,I can hear the clicking but wiper doesn’t move. With both switches on, the delay works but opposite. Any ideas? Thanks in advance.



[BiffNH]

Biffnh - I installed the board in my 2022 Kubota making sure to use the middle wire and the wiper works normally with the switch on. With switch off and board switch on,I can hear the clicking but wiper doesn’t move. With both switches on, the delay works but opposite. Any ideas? Thanks in advance.

It's been a while since I installed mine. The schematic I included in an earlier post (#13) worked for me. I do remember have something not work properly with the way I wired it first. That is why I posted my schematic. Sorry I can't provide a clear answer for your problem. I found that the middle terminal on the switch block had to be cut and routed to the Common on the board. This way the Board provided power to the wiper regardless of the position of the factory switch. I know that I found that the schematic that Indiana Kubota provided did not work in my case. That is why I provided the schematic that I found worked for me. Not sure this helps, but it is the best I can do. Good luck.



[Jay]

It's been a while since I installed mine. The schematic I included in an earlier post (#13) worked for me. I do remember have something not work properly with the way I wired it first. That is why I posted my schematic. Sorry I can't provide a clear answer for your problem. I found that the middle terminal on the switch block had to be cut and routed to the Common on the board. This way the Board provided power to the wiper regardless of the position of the factory switch. I know that I found that the schematic that Indiana Kubota provided did not work in my case. That is why I provided the schematic that I found worked for me. Not sure this helps, but it is the best I can do. Good luck.

I got it working. Figured out that my wiring is like the original diagram by Indiana kubota, even though my machine is a 2022. Strange. Wiper works normally with switch, and delays with board knob. Sweet! So glad it’s working. Very glad I found this forum!!



[BiffNH]

I got it working. Figured out that my wiring is like the original diagram by Indiana kubota, even though my machine is a 2022. Strange. Wiper works normally with switch, and delays with board knob. Sweet! So glad it’s working. Very glad I found this forum!!

That is really interesting! Glad you got it working - I love the unit - especially when snowing. Not sure why the wiring in my machine is a bit different. It did take me a while to figure it out.



[Junkman]

I wonder if the wiper motor on the cab version of the BX23S (Loader/Backhoe/Tractor) is the same as the RTVs. I am sure that I can find a place to install it in the trough above the windshield. I will add this to the "to-do" list this summer. Since my switch is a lever on the motor, I am unsure how it is wired.



[Smilingreen]

Bummer, that switch isn't available anymore. I'll look to see if I can find another model similar to it.



[Smilingreen]

Found it. E-bay. $10.83 + $10.00 shipping. I am going to order 2, incase I let the magic white smoke out of one of them.

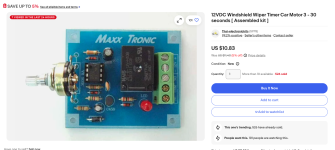

12VDC Windshield Wiper Timer Car Motor 3 - 30 seconds [ Assembled kit ] | eBay

When install the circuit to complete, the windshield wiper switch is operate normal. NO, COM and NC point is connected to the windshield wiper. [ Assembled KIT ]. Can be used for each car. You will receive the item within 1 -4 weeks depend on your location.

www.ebay.com



[BiffNH]

Found it. E-bay. $10.83 + $10.00 shipping. I am going to order 2, incase I let the magic white smoke out of one of them.

View attachment 15579

12VDC Windshield Wiper Timer Car Motor 3 - 30 seconds [ Assembled kit ] | eBay

When install the circuit to complete, the windshield wiper switch is operate normal. NO, COM and NC point is connected to the windshield wiper. [ Assembled KIT ]. Can be used for each car. You will receive the item within 1 -4 weeks depend on your location.

www.ebay.com

Yes - that is the one I used. I believe I purchased it via eBay. I was going to check my records and let you know but you beat me to it! Good luck. I love it. Especially when it is snowing .
